Brand: TILO

Made in China

Configuration: D65, TL84, F, UV four light sources

Weight: 28Kg

Dimensions(WxDxH): 710x405x570 mm

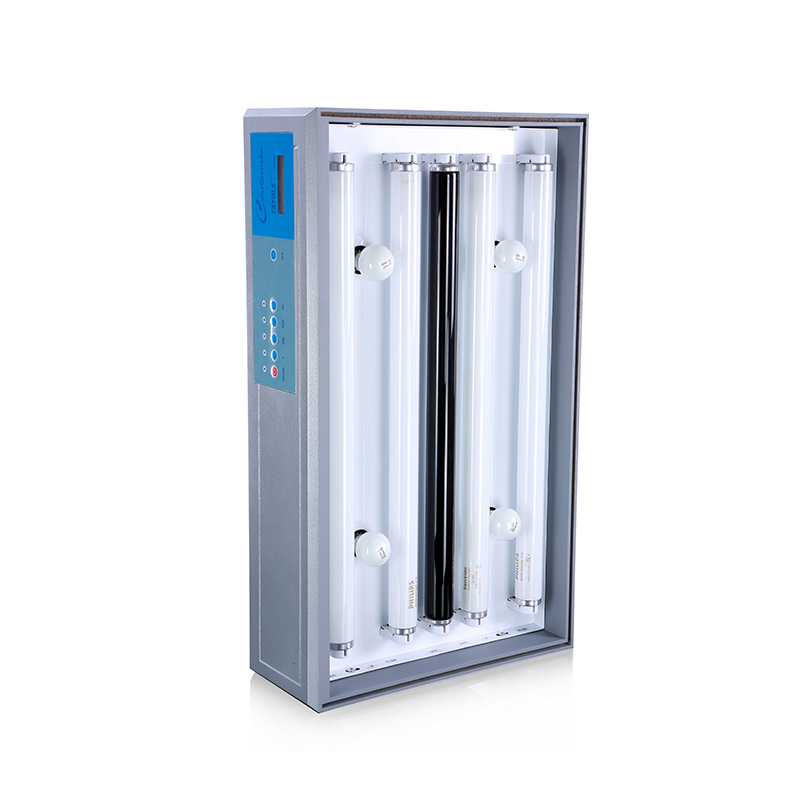

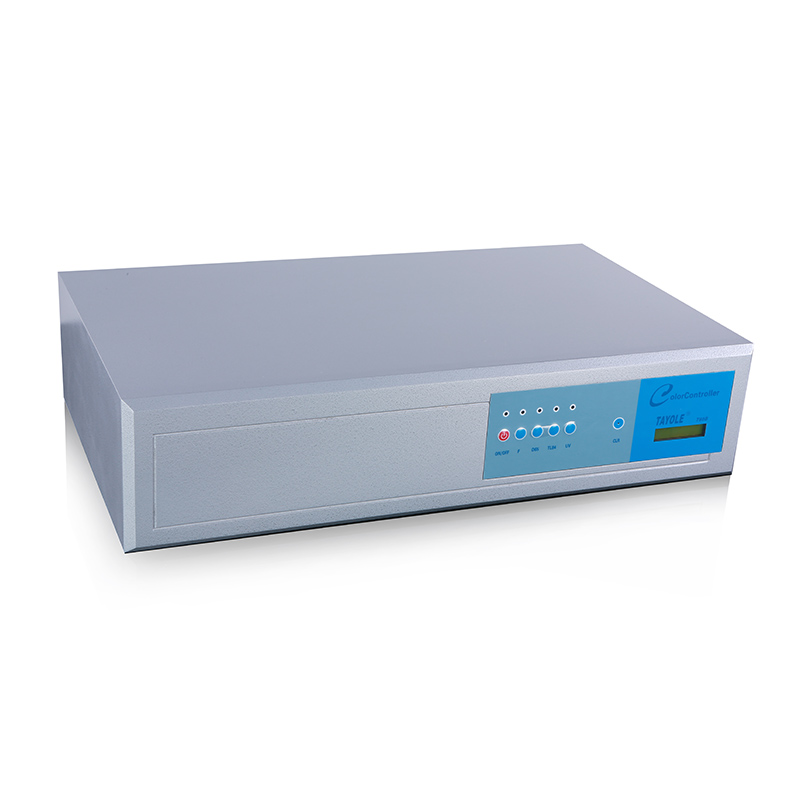

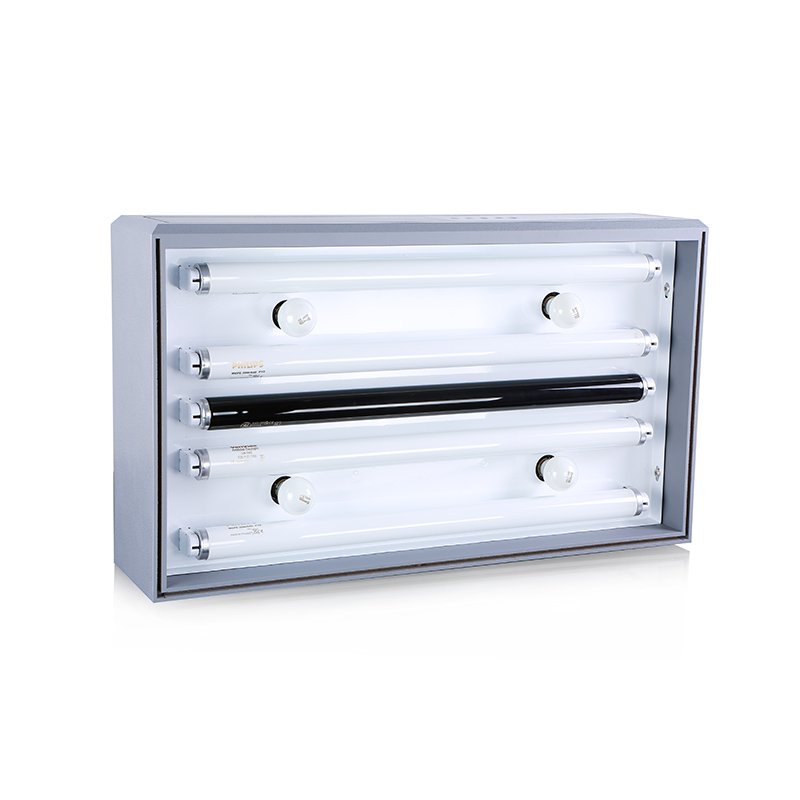

T60B color light booth is equipped with 4 light sources. Colors appear differently under different lighting sources. To avoid/reduce the assessment error when performing color contrast, we can make use of a Light Booth / Viewing Booth/Color Light Box to simulate different light sources to obtain an objective assessment of color and color difference, anytime, anywhere.

Features:

---

1. Display usage time, name, and number of switches for each source.

2. Automatic switching of light source with metamerism.

3. No warm-up, no flashing, fast and reliable evaluation of colors.

4. Low energy consumption, no heat dissipation, high luminous efficiency.

5. Original British CAC60 type lamp, the background color is fully compatible.

6. TILO high standard international brand.

Application:

---

The Color matching booths / Colour assessment cabinet / Color matching light box can be applied to the industries that need to perform color difference testing as follows: as the premiere designer and manufacturer of color viewing and lighting products for the Graphic arts, Photographic, Textile, Dyeing, Packaging, Printing, Leather, Inks, Knitwear, Plastic, Automotive and Ceramics industries.

Specifications:

Order No.	Name	Model	D65	TL84	F	UV	Voltage
10102	Standard light source booth	T60B four light source(220V)	2 pcs	2 pcs	4 pcs	1 pcs	220V/50Hz
10802	Standard light source booth	T60B four light source(115V)	2 pcs	2 pcs	4 pcs	1 pcs	115V/60Hz

Light Sources:

Light Source	Color viewing booths application	Color temperature(k)	Power(W)	Brand&Specification
D65	International standard Artificial Daylight	6500	20	VeriVide F20T12/65
TL84	Applied to stores in Europe, Japan and China	4000	18	PHILIPS TL-M 20W/840
F	"Sun-setting Light Yellow" incandescent light source (imitation of sunset)	2700	40	(VeriVide) Crompton 240V/40W
UV	Viewing under ultraviolet light to detect and evaluate optical brighteners or fluorescent pigments	Wave length:365nm	20	PHILIPS TLD 18W/BLB
