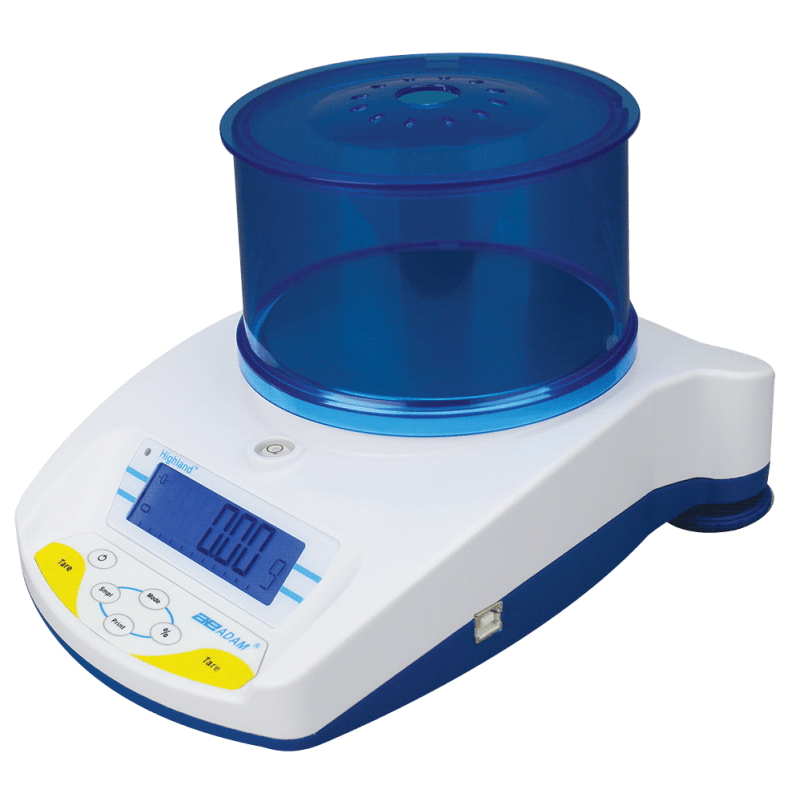

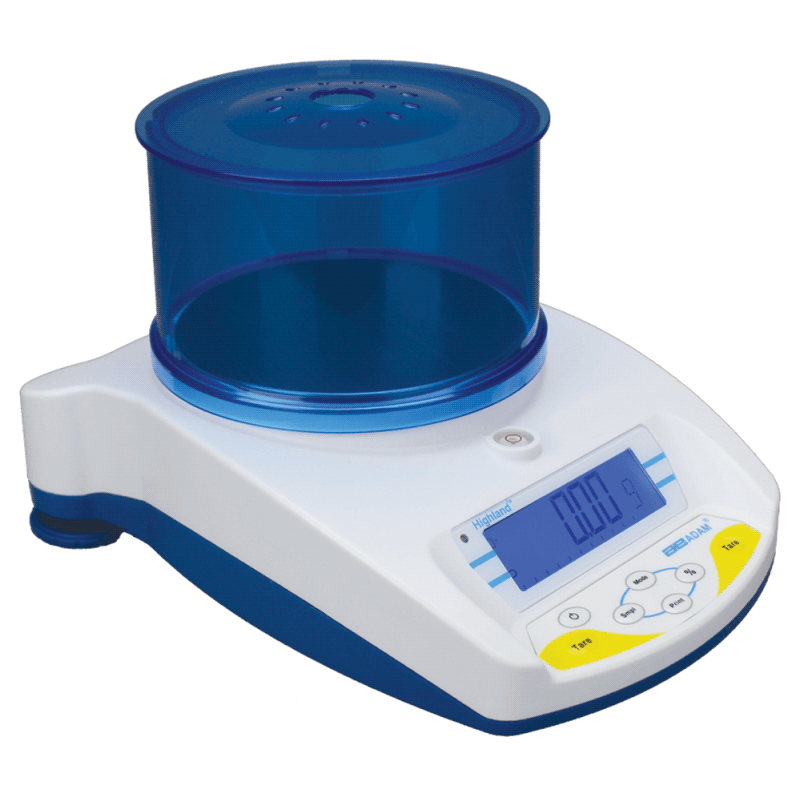

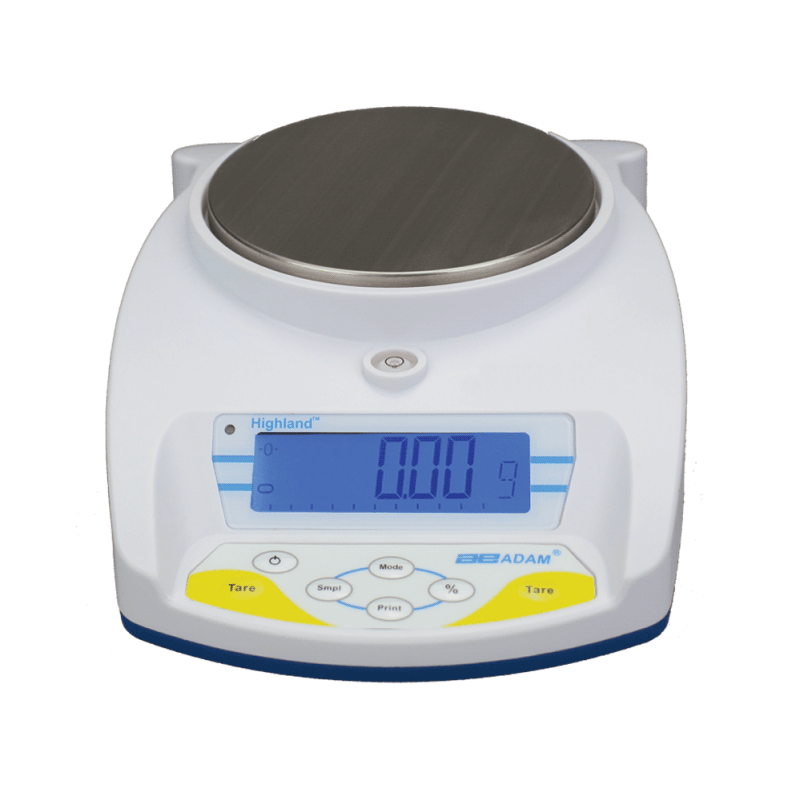

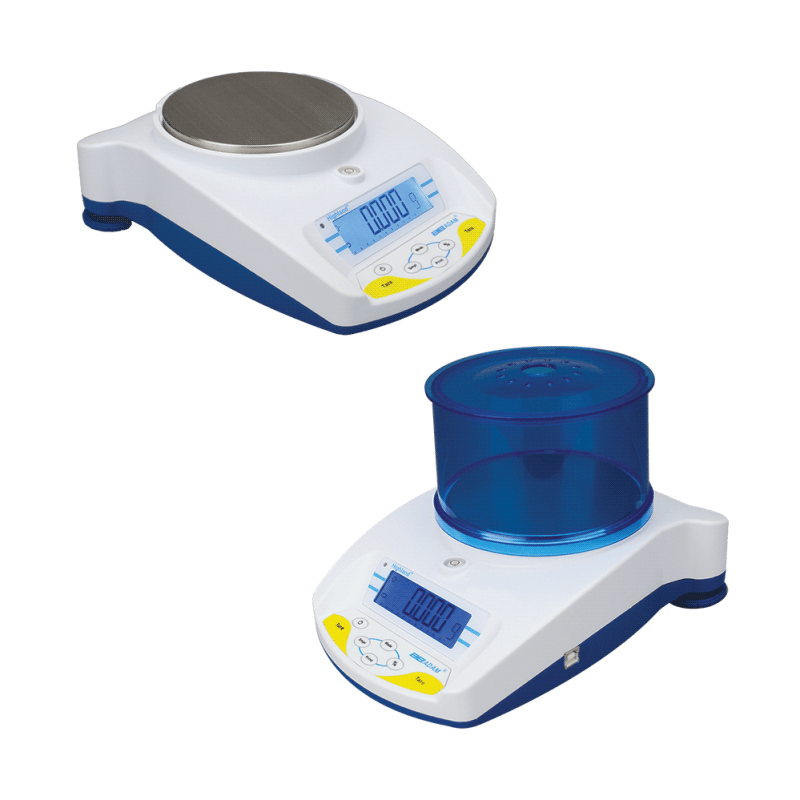

HCB Series Precision Portable Balance

Product Introduction

The portable precision balance offers advanced features in a compact durable balance that stacks for easy storage. Featuring multiple weighing applications including parts counting percent weighing and accumulation the provides fast acc

Contact Us

Thanks for your interest in SpectraLight QC . Please tell us a little about yourself and one of our color experts will be in touch shortly.

All Fields Required

Name * Required

Email Address * Please enter a valid email address

Phone Number * This field should contain only numbers

Comments Required

I give TILO permission to provide me with information about their products and services, and related products and services from TILO’s affiliates.

One of our experts can help configure and price this product for you.

Details

The portable precision balance offers advanced features in a compact, durable balance that stacks for easy storage.

Featuring multiple weighing applications including parts counting, percent weighing and accumulation, the provides fast, accurate weighing in a number of different environments – from science research in the laboratory or field, to manufacturing operations. Sturdy ABS construction allows the Highland to stand up to demanding lab use, while Highland’s offers advanced overload protection to keep the balance safe. HandiCal® facilitates internal calibration without the need for external weights.

HCB 123 Specifications

Capacity	120g
Readability	0.001g
Repeatability	0.002g
Weighing Units	g, lb, oz, N, GN, ct, dr, dwt, mm, ozt, T, tl.H, tl.S, tl.T
Calibration	External calibration / Internal manual calibration
Stabilization Time	2
Pan Size	4.7" ø / 120mm ø
Linearity	0.003g
Power Supply	12VDC 800mA adapter / Internal rechargeable battery
Construction	ABS plastic
Interface	RS-232, USB
Operating Temperature	0° to 40°C / 32° to 104°F
Net Weight	4.4lb / 2kg
Overall Dimensions	6.9"x9.9"x3.1" / 174x252x80mm (wxdxh)
Electrical Safety Mark	CE, cUL
Approvals	N/A
Display Digit Height	0.7" / 18mm
Battery Life (Hours)	24

Features and Benefits

Hardware

Balances stack efficiently and safely to save space (120mm pan size only)
Color-coded keys facilitate quick recognition of the most frequently used buttons
Dual tare keys operate with either the left or right hand
Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
Security slot for optional Kensington-type lock and cable to help prevent theft
Large, grade 304 stainless steel pan allows swift cleaning
Solid ABS housing is durable for industrial use
Three-point ShockProtect feature helps prevent overload damage to internal components
Hook included for weighing below the balance
HandiCal® internal calibration eliminates need for external weight set
USB and RS-232 interfaces provide speedy communication with computers and printers

Software

Audible overload alarm warns when capacity is exceeded
External calibration allows for verification and adjustment with weights
Selectable digital filtering helps minimize effects of vibration and disturbances
Parts counting with preset sample sizes
Memory accumulation totals results
Zero-tracking feature ensures display returns to zero reading

Display

Vivid, backlit LCD easily visible in any lighting conditions
Programmable backlight can be set to "always on," "always off" or "light only when weighing"
Capacity tracker built into display for easily monitoring possible overloads

Power

AC adapter included
Rechargeable battery included for operation almost anywhere
Programmable auto power-off to save energy

Model	Capacity	Readability	Pan Size
HCB 123	120g	0.001g	4.7" ø / 120mm ø
HCB 153	150g	0.005g	4.7" ø / 120mm ø
HCB 302	300g	0.01g	4.7" ø / 120mm ø
HCB 602	600g	0.02g	4.7" ø / 120mm ø
HCB 602H	600g	0.01g	4.7" ø / 120mm ø
HCB 1002	1000g	0.01g	4.7" ø / 120mm ø
HCB 1502	1500g	0.05g	4.7" ø / 120mm ø
HCB 3001	3000g	0.1g	4.7" ø / 120mm ø
HCB 2202	2200g	0.01g	4.7" ø / 120mm ø
HCB 6001	6000g	0.1g	5.7" ø / 145mm ø
HCB 602	600g	0.02g	4.7" ø / 120mm ø
